rsmChoose: Choosing a response surface design from a table

Source: R/3.3_Factorial_designs_Functions.R
rsmChoose.Rd

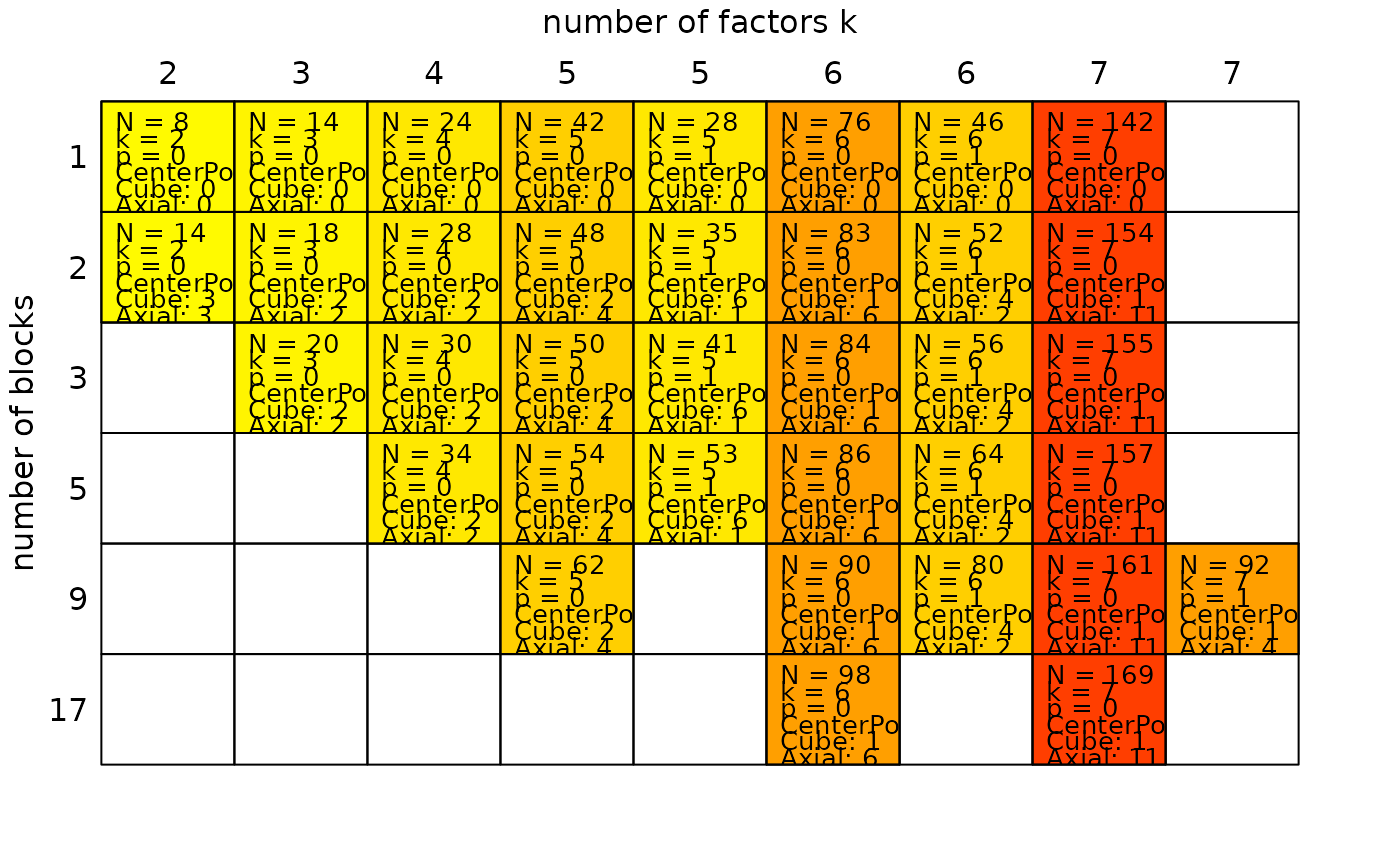

Designs displayed are central composite designs with orthogonal blocking and near rotatability. The function allows users to choose a design by clicking with the mouse into the appropriate field.

Usage

rsmChoose()

Value

Returns an object of class facDesign.c.

See also

fracChoose, rsmDesign

Examples

rsmChoose()

#>
#> Choose a response surface design by clicking into the appropriate field
#> Waiting for your selection:
#>
#>    StandOrd RunOrder Block      A      B  y
#> 6         6        1     1  0.000  0.000 NA
#> 2         2        2     1  1.000 -1.000 NA
#> 7         7        3     1  0.000  0.000 NA
#> 5         5        4     1  0.000  0.000 NA
#> 3         3        5     1 -1.000  1.000 NA
#> 1         1        6     1 -1.000 -1.000 NA
#> 4         4        7     1  1.000  1.000 NA
#> 9         9        8     2  1.414  0.000 NA
#> 8         8        9     2 -1.414  0.000 NA
#> 13       13       10     2  0.000  0.000 NA
#> 12       12       11     2  0.000  0.000 NA
#> 11       11       12     2  0.000  1.414 NA
#> 10       10       13     2  0.000 -1.414 NA
#> 14       14       14     2  0.000  0.000 NA
